Computer Jacquard Crochet Machine High‑speed Equipped with Three‑layer Weft Feeding

Name: Computer Jacquard Crochet Machine Highspeed Equipped with Threelayer Weft Feeding
Brand: HUAFANG
Price: 1 USD

Quality Computer Jacquard Crochet Machine High‑speed Equipped with Three‑layer Weft Feeding for sale

Model Number : HF-CT609/B16

Application : Lace trims, medical tapes, garment straps, zipper belts, decorative narrow textiles

MOQ : 1

Delivery Time : 15 work days

Machine Type : Jacquard Crochet Machine

Price : Negotiation

Computerized : Yes

Certification : CE/IOS9001/UDEM

Payment Terms : T/T,L/C

Knitting Style : Warp

Operation Mode : Automatic

Knitting Width : 600mm

Place of Origin : Dongguan ,China

Supply Ability : 300 sets/month

Voltage : 380V/220V

Brand Name : HUAFANG

Highlight : Left negative‑pressure selvedge trimming, three‑color marker unit, three‑layer conveying assembly

Packaging Details : Negotiation

Contact Now

Production Overview

HF‑CT609/B16 computer jacquard crochet machine is advanced narrow textile manufacturing equipment. It adopts latest integrated signal controller, stable operation and easy parameter adjustment. Pattern editing can be finished directly on machine screen, supports fast pattern modification and repeat production. The machine can produce various kinds of narrow textile straps, widely adapted for multiple textile product processing demands.

Main Features

Equipped with electronic jacquard yarn bar control system, it realizes precise pattern shaping. 16 working bars deliver rich pattern diversity. The whole mechanical structure is stable, low‑failure and convenient for daily maintenance. Pattern data can be imported and exported via USB device, greatly improving production conversion efficiency. It effectively avoids edge curling and uneven selvedge for finished textile strips.

Applications

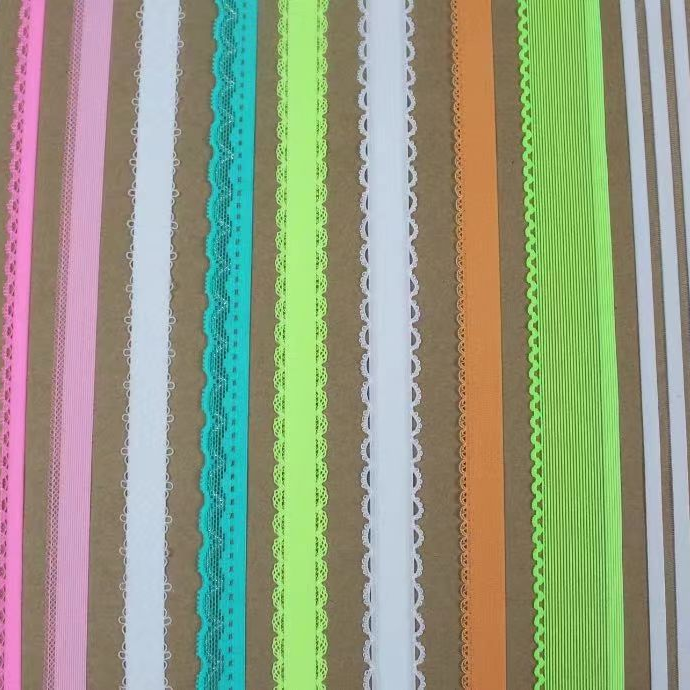

Lace trims Medical bandage tapes Garment straps Zipper belts Sport belt buckles Various decorative narrow textile strips

Technical Parameters

Item	Specification
Model	HF‑CT609/B16
Working Width	600mm
Needle Count	15needles/20needles/24needles per inch
Electronic Jacquard Yarn Bar	16 bars
Power Supply	3‑phase 380V, 5.5KW
Standard Outfit	Front beam holder, three‑layer transport unit, drop‑off device, three‑color marker unit, broken‑yarn self‑stop device

Packing

Packed in standard export wooden case, customized packing solution is negotiable.

Company Profile

Huafang Machinery is a professional manufacturer specialized in narrow‑webbing textile machinery. We focus on R&D and production of webbing setting equipment and related spare parts. With rich practical experience in textile industry, we provide reliable machines and effective solutions for global webbing manufacturers.
