Servo-driven high-speed shuttleless looms, specializing in the processing and production of various narrow-width ribbons.

Name: Servodriven highspeed shuttleless looms specializing in the processing and production of various narrowwidth ribbons
Brand: HUAFANG
Price: 1 USD

Quality Servo-driven high-speed shuttleless looms, specializing in the processing and production of various narrow-width ribbons. for sale

Machine Type : High‑speed Servo Flat‑Head Shuttleless Ribbon Loom

Payment Terms : T/T,L/C

Origin : China

Model Number : HF

Applicable Products : Narrow elastic & non‑elastic webbings

Key Attributes : Energy‑saving, high‑speed running, precise weft density control, automatic circulating lubrication, CE safety enclosure, supports multi‑strip weaving, suitable for mass & small‑batch orders

MOQ : 1

Delivery Time : 15 work days

Drive Mode : Servo motor drive with planetary reducer

Price : Negotiable

Machine Speed : 1200‑1400 rpm

Certification : ISO9001/CE/UDEM

Operation Mode : Touch‑screen digital control

Place of Origin : Dongguan,China

Core Components : Servo motor, touch screen, planetary reducer, electrical control unit

Supply Ability : 300 sets/month

Voltage : 220V

Brand Name : HUAFANG

Packaging Details : Negotiable

Contact Now

Production Overview

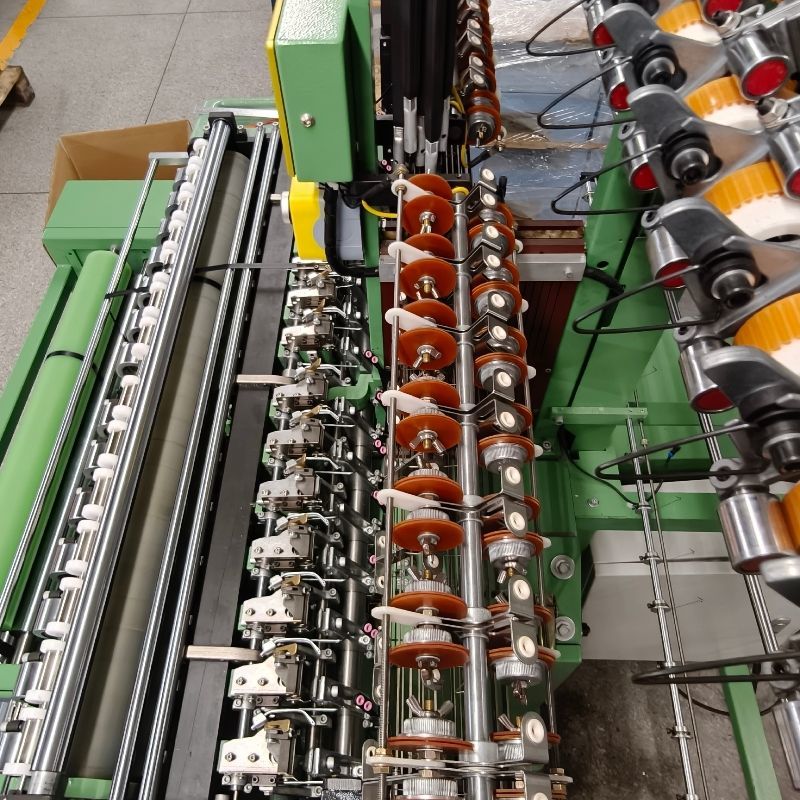

The HF‑B704‑M high‑speed servo flat head shuttleless ribbon loom is developed for production of various narrow elastic and non‑elastic webbings.

Built with reliable quality, our machines are certified with ISO9001, CE and UDEM. Equipped with computer smart touch screen and advanced servo motor control system, it realizes digital parameter adjustment instead of traditional mechanical setting.

This machine solves common production issues including unstable webbing quality, high energy consumption and heavy dependence on skilled operators. It supports multiple‑strip simultaneous weaving, fits both mass‑volume production and small‑batch diversified orders. It helps webbing factories improve finished‑product consistency, cut production cost and raise overall output efficiency.

Product Features

High‑Precision Weft Density Control

Adopts electronic servo motor and planetary reducer. It delivers accurate weft density control with flexible parameter adjustment. Suitable for complex‑pattern fabrics, improves product stability and fabric quality.

Energy‑Saving Servo Motor Control System

International advanced servo drive system brings high‑precision and fast response motion control. It runs at only 0.75KW under normal working status, saving 40% power consumption compared with traditional two‑speed motors. Strong adaptability under variable speed and variable load conditions.

Intuitive Computer Smart Display

All machine operations and weft‑density settings are completed via touch‑screen panel. Parameters modification and status monitoring are simple and efficient. It supports automatic linkage and data management for convenient production management.

Reliable & Safe Mechanical Structure

Comes with automatic circulating oil supply device for high‑speed gear and chain lubrication, extending spare‑part service life. Full‑covered carbon‑steel protective housing meets CE safety standards. Optimized floor‑standing integrated base enhances machine stability for higher running speed and capacity.

Wide Compatibility & Easy Maintenance

Core components are precisely manufactured with standardized interchangeable spare parts. Optional accessories are available to match different production demands. Suitable for medium‑large scale webbing manufacturers with various product requirements.

Application Areas

Underwear Webbing Production

Medical Bandage & Bra Strap Manufacturing

Elastic Tape & Sports Webbing Processing

Optional Accessories

Tape drawing machine

PT5 device

Double‑layer tape delivery device

Heavy‑duty knurled wheel assembly

Electronic servo active let‑off system with 1‑30 positions

Rear drop belt, take‑up and rewind device

HF‑C4012 heating setting machine

Packing & Delivery

Adopt standard export wooden case packaging, customized packaging solutions can be negotiated.

Company Profile

Huafang Machinery is a professional manufacturer specialized in narrow‑webbing textile machinery. We focus on the R&D, production and sales of various ribbon weaving equipment and supporting spare parts. Boasting abundant practical experience in the textile webbing industry, we keep optimizing machine performance to address actual production pain‑points for customers. We are committed to supplying stable‑quality, cost‑effective machinery and customized production solutions for webbing manufacturers all over the world.

Item	HF6/66	HF12/27
Number of Webbing Strips	6	12
Reed Width	66 mm	27 mm
Number of Palm Frames	20	20
Paper Plate Cycle	48	48
Max. Power	4.3 KW	4.3 KW
Machine Speed	1200‑1400 rpm	1200‑1400 rpm
Weft Density	2.9‑40.3	2.9‑40.3
Paper‑Frame Length	530 mm	800 mm
Voltage	220V	220V
Machine Net Weight	600 KG	600 KG
Core components	Servo motor, touch screen, planetary reducer, electrical control unit	Servo motor, touch screen, planetary reducer, electrical control unit
Place of origin	China	China
Key Selling Points	Multi‑strip weaving, energy‑saving servo drive, high‑speed operation, CE safety protection, digital touch‑screen control	More weaving strips, energy‑saving servo drive, high‑speed operation, CE safety protection, digital touch‑screen control
